Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: JDR
  • Model Number: FY017
  • Color: Grey white
  • Function: Driving
  • Power: DC
  • Protect Class: IP65
  • Shape: Linear
  • Stroke: 50-1000mm
  • Load: max 6000N
  • Speed: 30mm/s
  • Limit switch: inner
  • Certification: CE,ROHS,SGS

Packaging & Delivery

Packaging Details Carton package
Delivery Time Negotiable ,usually 3~5 days , depends on the order quantity

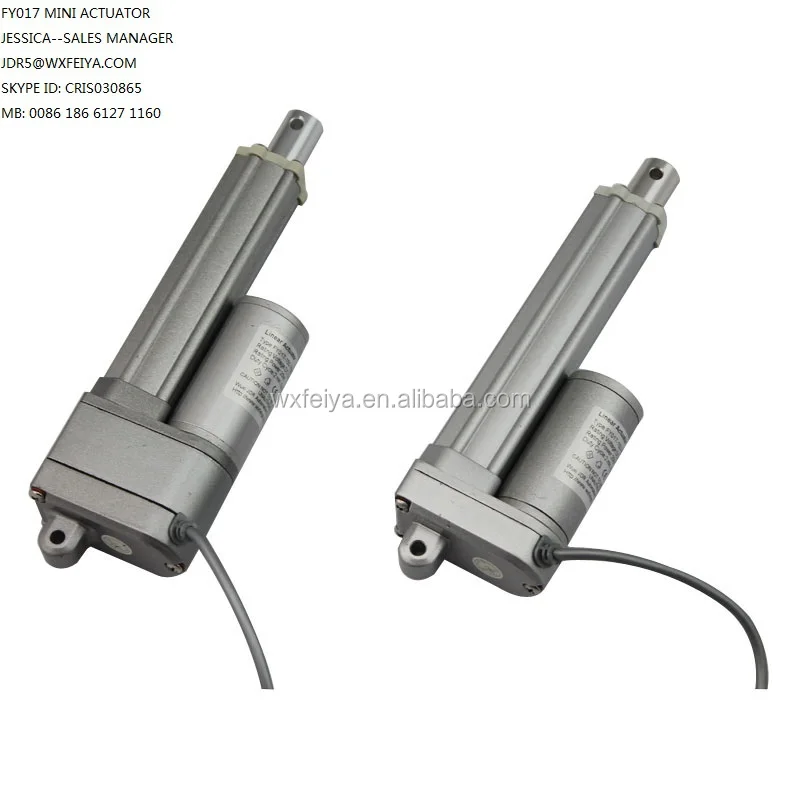

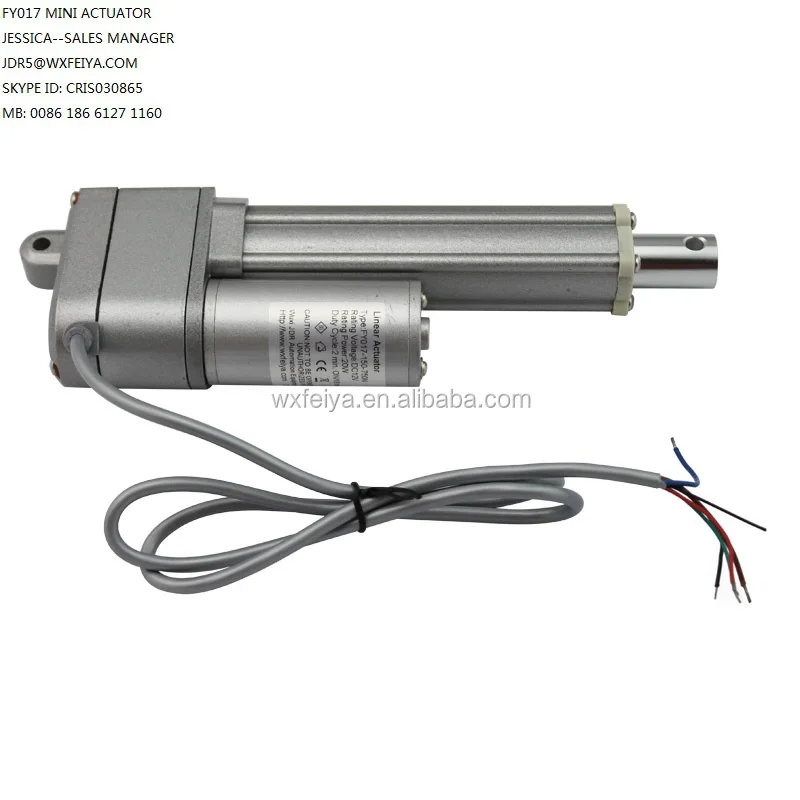

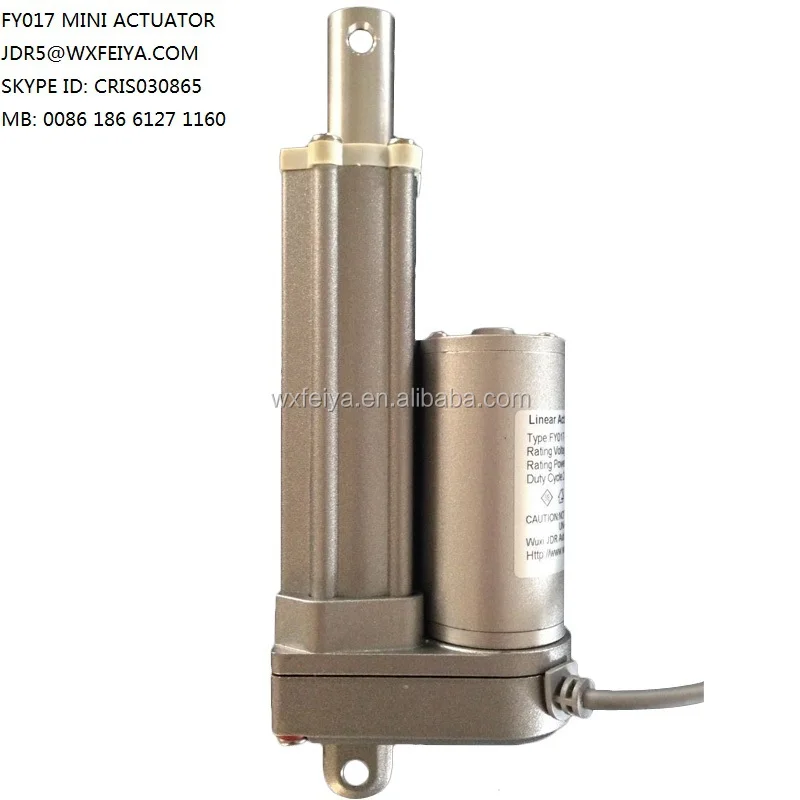

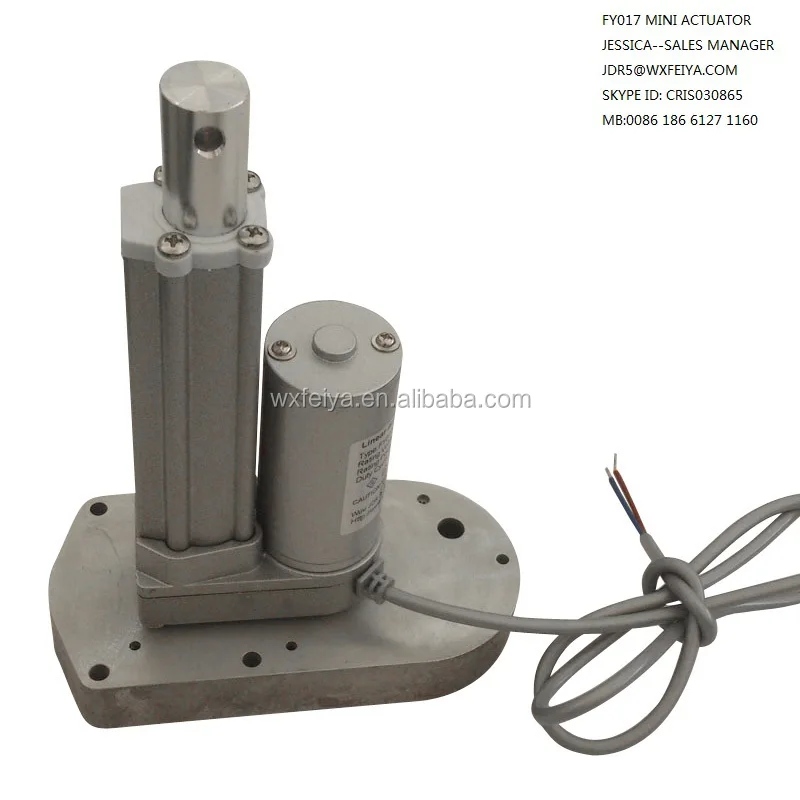

Product Description




      1) waterproof

        2) Low noise
        3) Competitive price

        4) Excellent after-sale service



           1) 12VDC or 24VDC permanent magnet motor

         2) Thrust up to 750N in push ,

         3) Elegant and compact design with small instanllation dimensions

         4) Built-in limit switches ( not adjustable after leaving factory )

         5) Aluminium outer tube / inner tube Ø40mm / Ø18mm

         6) Aluminium or zinc alloy back fixture

         7) Stroke : 50~500 option

         8) Min Installation Dimension : S +110mm

         9) Standard protection class

       10) Noise level < 50 db

       11) Warranty : Two years

       12) Duty cycle : 10%, or 2 munutes continous working followed by 18 minutes not in use

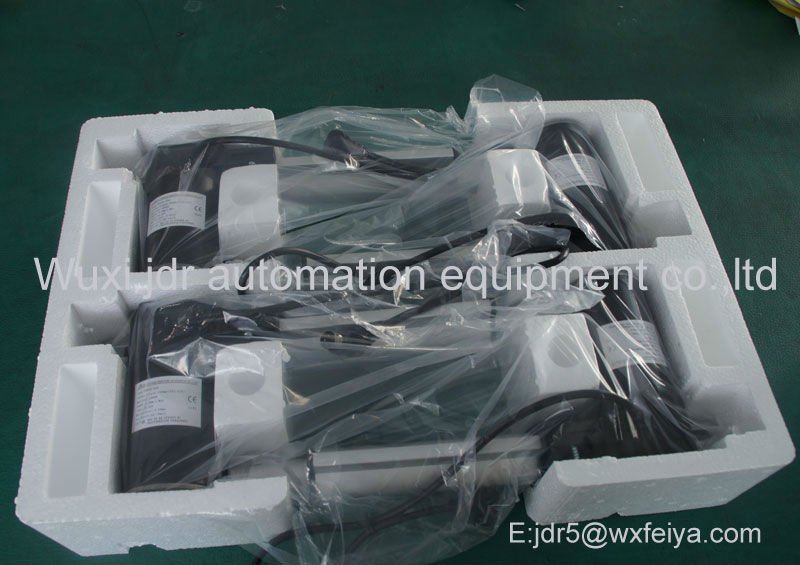

Packaging & Shipping


Our Services


High quality of electric linear actuator to worldwide customers. We are professional manufacturer in Electric Linear Actuator and Electric Linear Motor.



Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical  instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on.


Specification of OurElectric linear actuator:

Max. Thrust: 4000N, 6000N, 8000N

Voltage:24VDC or 12VDC, Motor Drive

Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.

Duty cycle:10%

Ambient temperature -26°C  to +65°C

Standard protection class:IP 43

Built-in integral limit switch, not adjustable after leaving factory

Low noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded.


Overload protection


CE Certificated


Availability in Black, White and Gray housing


Quality Guarantee

We provide 1 year warranty for JDR Linear Actuators.

We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.

Maintenance service

No matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR.

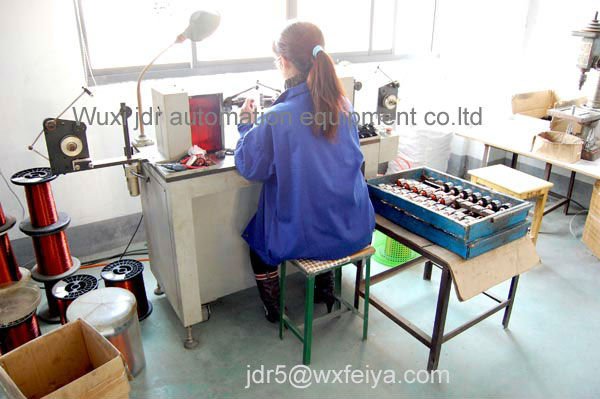

JDR QC TeamJDR QC team consists of more than 10 professional people to ensure 100% products high quality.


Contact Us

We highly appreciate your any enquiry by email, by fax or by Instant message.We will reply your email or fax within 18 hours.Please feel free to call us at any time if there is any question.



All available shipping ways could be applied, by courier, by air or by sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you before the goods arrive.


We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
